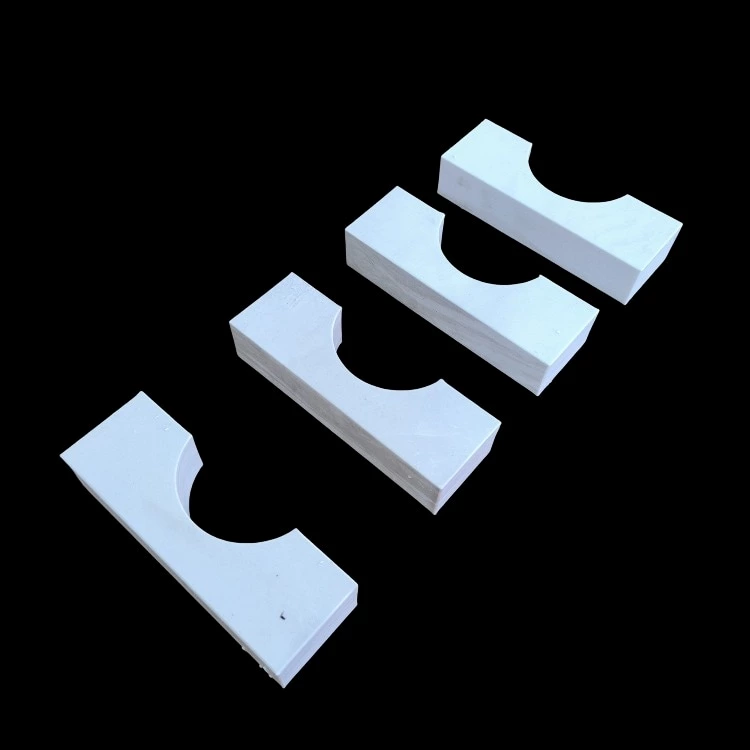

cnc machined structure uhmwpe material
- impact resistance
- wearability
- chemical and corrosion resistance
- conveyor parts and sanitary equipment
- UHMW plastic flange bearings are self-lubricating
- Food Grade
The first step is to simply fill in your information and upload your CAD file. This helps us to create a 3D model of your desired part or prototype.
Within 12 hours, we will provide you with a quote and DFM feedback. This ensures that your project is feasible and provides you with an accurate cost estimate.
Once you have approved the quote and design, we will start production on your CNC prototype or CNC machined parts products.
CNC machined parts or products will be produced within a few days. We ship to you by international express. Please feel free to give us feedback to ensure that they meet your expectations.
Various processing techniques are ready to achieve your specifications. We will offer the best way to suit your part details, tolerances, quantities.
Our technical knowledge and expertise in engineering plastics help you to select the right formulation for your specific application.
Regular sheet, rods, tubes and profiles on stock to support the fast delivery and ultimate convenience for you.
All of our products are available with Low minimum order quantity, no hidden setup charges and fast lead times.
| Thickness(Inch) | Thickness(MM) | Application |
|---|---|---|
| 1/8'' | 3.175mm | Flexible And Thin, Mininal Friction ,High Precision ,Guiding Systems,Rail lining,and Light weight Machinery Components |
| 1/4'' | 6.35mm | Added Durability,No Selfied Flexibility,Mid-load Applications,Light-duty Conveyor Parts,Packaging Machinery,Protective Lining |
| 3/8'' | 9.525mm | Balance Between Thickness and Flexibility ,Agricultural Machinery Linings,Conveyor Chutes,And Sliding Surfaces Inlight Industrial Equipment |
| 1/2'' | 12.7mm | As Standard Industrial Thickness,Used In Heavy-duty Conveyor Systems,Cutting Surfaces,And Machinery Parts |
| 3/4'' | 19mm | Equipment Liners,Protective Guards,Structural Components |
| 1'' | 25.4mm | Loading-Bearing Surfaces,Heavy Equipment Liners,Impact-resistant Barriers,Maxmum Strength In Protection And Longevity |
| Grade | Description | Standard Colours |
|---|---|---|
| Virgin | Standard Uhmwpe | Natural/Black/Green/Colours |

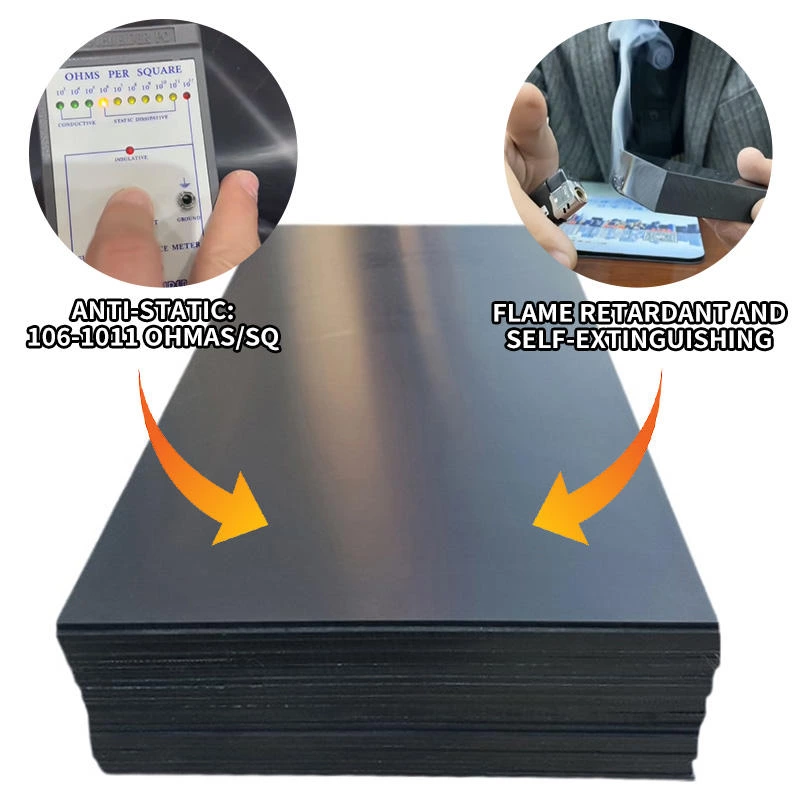

| Anti-Static | Reduces Static Build-up,106_1011 ohms/sq Surface Resistivity | Black |
| Reprocessed | Eco-friendly And Eco Benefit | Black |
| Uv-Stabilized | Formulation For Outdoor Application | Black |
| Flame Retardant | Flame Retardant And Self-Extinguishing | Black |
| Borated Uhmwpe | Boron Loaded For Neutron Shielding Purposes | Black |
| Marine Grade | Low Friction,Excellent Impact Strength And Good Wear Resistance | Black/Yellow/Blue/Colours |
| Lining Grade | Ideal Material For The Bulk Material Handling And Mining Industry | Black/Blue/Grey/Natural |
| Tech | MoS2 Added For Improving Wear Resistance And Sliding Properties | Grey-Black |
| Oil Filled | Reduced Coefficient Of Friction | Grey |
| Glass Filled | Superior Wear Resistance And Dimensional Stability | Blue |
| Metal Detectable | Metal Detectable For Food Processing | Blue |
| Rubber Backed | Rubber Backing Allows The Use Of Adhesives | - |
| COLOR OPTION | APPLICATION |
|---|---|
| Green Uhmw | Agricultural ,Chute Liner,Clear Identification |
| Red Uhmw | Signaling And Alert Zones |

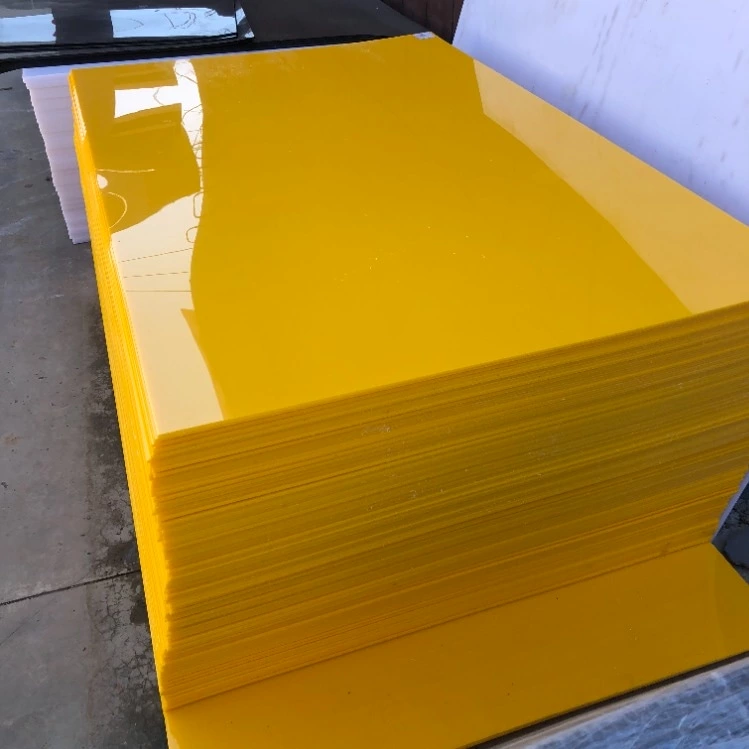

| Yellow Uhmw | Safety Applications,Zone For Clear Marking,Warehouse Markers,Equipment Guards |
| Blue Uhmw | Chemical Resistance,Ideal For Conveyor Belts,Cutting Surfaces,Food Packaging Equipment |
| White Uhmw | Food Grade,Sanitary Environment,Non-Toxic,Easy-to-Clean,Food Medical |
| Black Uhmw | Uv Resistance,Outdoor And Heavy Duty,Construction Liners,Mining Operation |
Finish:Planed/Smooth As Molded
Production Method:Compression Molded
Ultra High Molecular Weight Polyethylene UHMW-PE Products have a well-balanced property profile with a unique combination of wear and corrosion resistance,a low friction surface,and excellent impact strength.the property make UHMW-PE a universally usable material for a wide range of industries and applications
| Technical Data Sheet | |||
|---|---|---|---|
| Physical Properties | Test Standard | Value | Unit |
| Density | ASTM D792 | 0.93 | g/cm3 |
| Water Absorption | ASTM D570 | <0.10 | % |
| Mechanical Properties | Test Standard | Value | Unit |
| Hardness | ASTM D2240 | 62-66 | Shore D |
| Wear Resistance | Sand-Slurry | 100 | - |
| Tensile Strength at Yield 23℃ | ASTM D638 | 3100 | psi |
| Tensile Modulus | ASTM D638 | 100000 | psi |
| Elongation At Break | ASTM D638 | >350 | % |
| Flexural Strength | ASTM D790 | 3500 | psi |
| Compressive Strength | ASTM D695 | 3000 | psi |
| Coefficient Of Friction,Dynamic | - | 0.10-0.22 | - |
| Coefficient Of Friction,Static | - | 0.15-0.20 | - |
| Izod Impact,Notched | ASTM D256 | No Break | Ft-Lb/in |
| Izod Impact Strength | ASTM D4020 | 125 | KJ/M2 |
| Thermal Properties | Test Standard | Value | Unit |
| Service Temperature | - | -200 to 90 | ℃ |
| Melting Point | ASTM D3418 | 130 to 135 | ℃ |
| Vicat Softening Point | ISO 306 | 80 | ℃ |
| Heat Deflection Temperature | ASTM D648 | 43 | ℃ |
| Flammability,UL94 | - | HB | - |
| Electrical Properties | Test Standard | Value | Unit |
| Surface Resistivity | ASTM D257 | >1012 | Ω/cm |
| Volume Resistivity | ASTM D257 | >1015 | Ω/cm |

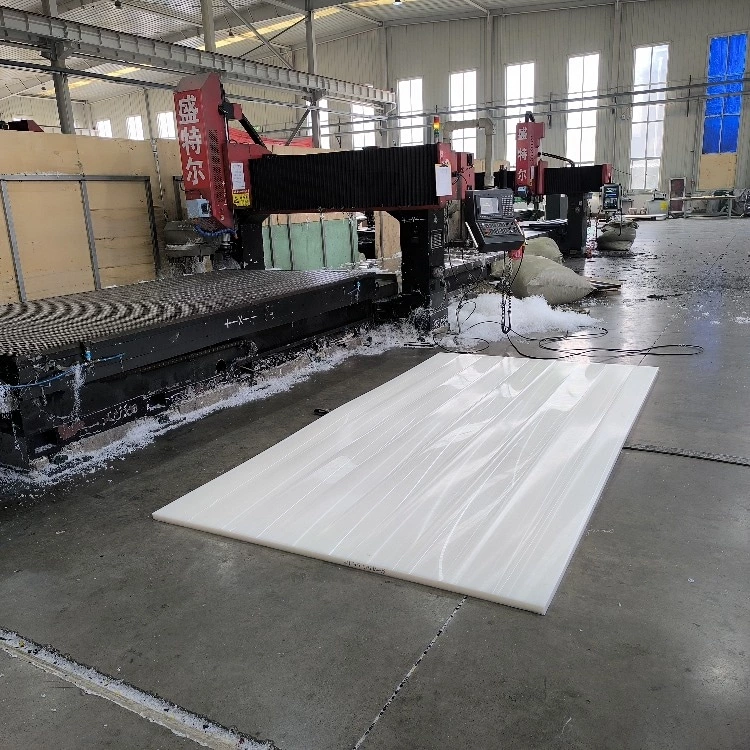

Size: As the most professional supplier in China, we have the most mold sizes for our customers to choose from. The maximum size is 2M*6M. And we can provide high-quality cutting services to meet the specific needs of different customers for sizes.
Thickness: According to different thickness requirements, We produces the UHMW liner with a thickness of 8mm (Min) and 200mm(Max).
Color: There is a wide range of standard colors available and colors can be customized according to RAL or Pantone color card.
Formulation: UHMW is a high-performance, versatile polymer that can be designed and formulated to meet your industrial needs.
